Touch Screen Horizonal Tensile Testing Machine 100KGF Speed 1～400mm / Min

Name: Touch Screen Horizonal Tensile Testing Machine 100KGF Speed 1400mm Min
Brand: PERFECT
Price: 1 USD

Wholesale Touch Screen Horizonal Tensile Testing Machine 100KGF Speed 1～400mm / Min from china suppliers

Brand Name : PERFECT

Model Number : PT-1197

Certification : ISO, SGS, CE

Place of Origin : Dongguan , Guangdong, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 150 sets per month

Delivery Time : 7-10 working days

Packaging Details : Wooden case

Type : Horizonal Type Tensile / Peel Strength Tester

Display : Touch type force and extention display

Testing Speed : 1～400mm/min

Test Stroke : Max 300mm

Motor : Servo

Contact Now

Horizonal Tensile Testing Machine , 100KGF Tensile Testing Equipment Touch Screen

Introduction: Horizontal tension machine is suitable for carrying belt, adhesive belt, adhesive tape, artificial leather and other products of stripping force, tensile strength, shear force, elongation at break, etc

Small Horizonal Tensile Machine Specifications :

Model	PT-1197	PT-1197D
Capacity	2,5,10,20,50,100kgf choose one
Displayer	Touch type force and extention display
Measurement Accuracy	Better than ±1.0%
Force Resolution	1/500,000
Effective Range of Measurement	1~100%F.S
Deformation Display Accuracy	Better than ±1.0%
Test Speed	1～400mm/min,free set
Test Stroke	Max 300mm,not including the fixture length
Unit Switch	kgf,gf ,N,kN,Ibf
Stress unit switch	MPa,kPa,kgf/cm²,Ibf/in²
Deformed unit switch	mm,cm,in
Stop Method	Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Point Method	Manual pick - up and pre-set pick - up (20 points)
Standard Configuration	Tensile fixture 1 set,user manual 1 ,qualified certificate 1,wrranty card one
Computer extension	NO	Yes
Machine Size	About 67×23×33cm(W×D×H)
Machine Weight	About 25kg
Motor	Stepper Motor
Power	1PH,AC220V,50/60Hz,10A or as specified

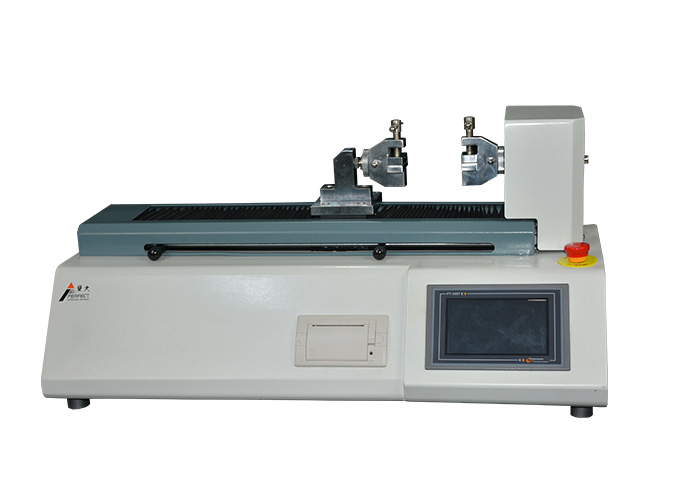

Refer Photo of Small Horizonal Tensile Machine:

Touch Screen Horizonal Tensile Testing Machine 100KGF Speed 1～400mm / Min
