Brand Name : POOTAB
Model Number : PT-6088B
Certification : ISO, CE,SGS
Place of Origin : China
MOQ : 1 set
Price : Negotiable
Payment Terms : T/T, L/C, Western Union
Supply Ability : 150 ses per month
Delivery Time : 20 working days after deposit
Packaging Details : polywood case
Standards : follows PSTC-13, ASTM D1000
Control Method : computer control & LCD touch screen operation
Load Cell : 10kgf、20kgf、50kgf, Option One
Peel Speed : 0 ~ 122m/min±3 meters/min
Software : CI701G software
Specimen : reel diameter within 75mm,max O.D 300mm.
Motor : AC servo Motor
Weight : About 28kg
Unwind Force Tester For Pressure Sensitive Adhesive Coated Tapes
PT-6088B High Speed Unwind Tester.pdf
Application of uncoil tester: The high speed unwinding force tester is used to peel off an entire roll of adhesive tape with high speed and the strength change can be detected and observed. At the same time, the peel force can be analyzed in the process. Follow ASTM D1000
Specification of unwind force tester:
Model. | PT-6088B High Speed Unwind Force Tester For Pressure Sensitive Adhesive Coated Tapes |
Specimen Size | Within reel diameter 75mm and width 75mm (reel can be customized), the maximum outer diameter of 300mm. |
Force Sensor | 100N, 200N, 500N, one choice |
Design Standards | ASTM D1000 |
Force Resolution | 1/300,000 |
Test Software | CI701G special software for unwind test, automatic recording of the time unwound 25%, 50% and 75% force value. |
Unwinding Speed Range | 0 ~ 122±3 m/min |
Force Unit Switch | All units can be arbitrarily selected; you can also define you own units. After test is completed also can be any conversion. |
Machine Dimension | About 50*40*30cm(W*D*H) |
Weight | About 28kg |
Motor | AC Servo Motor |
Operation Mode
| touch screen control , connect computer ocontrol |
Power Supply | AC 220V or 110V |
Related Standard Content :

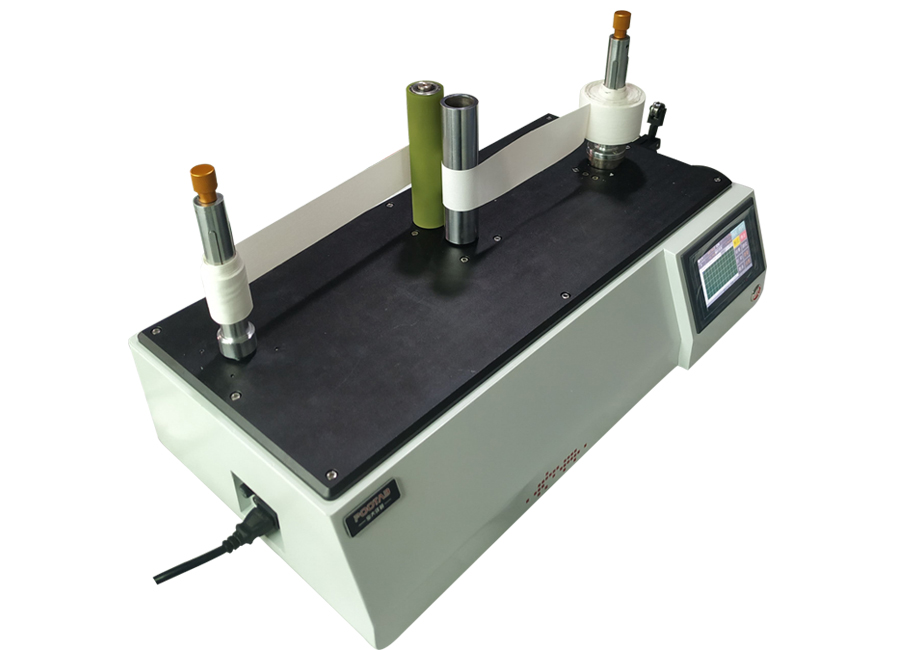

Unwind Force Tester Picture:

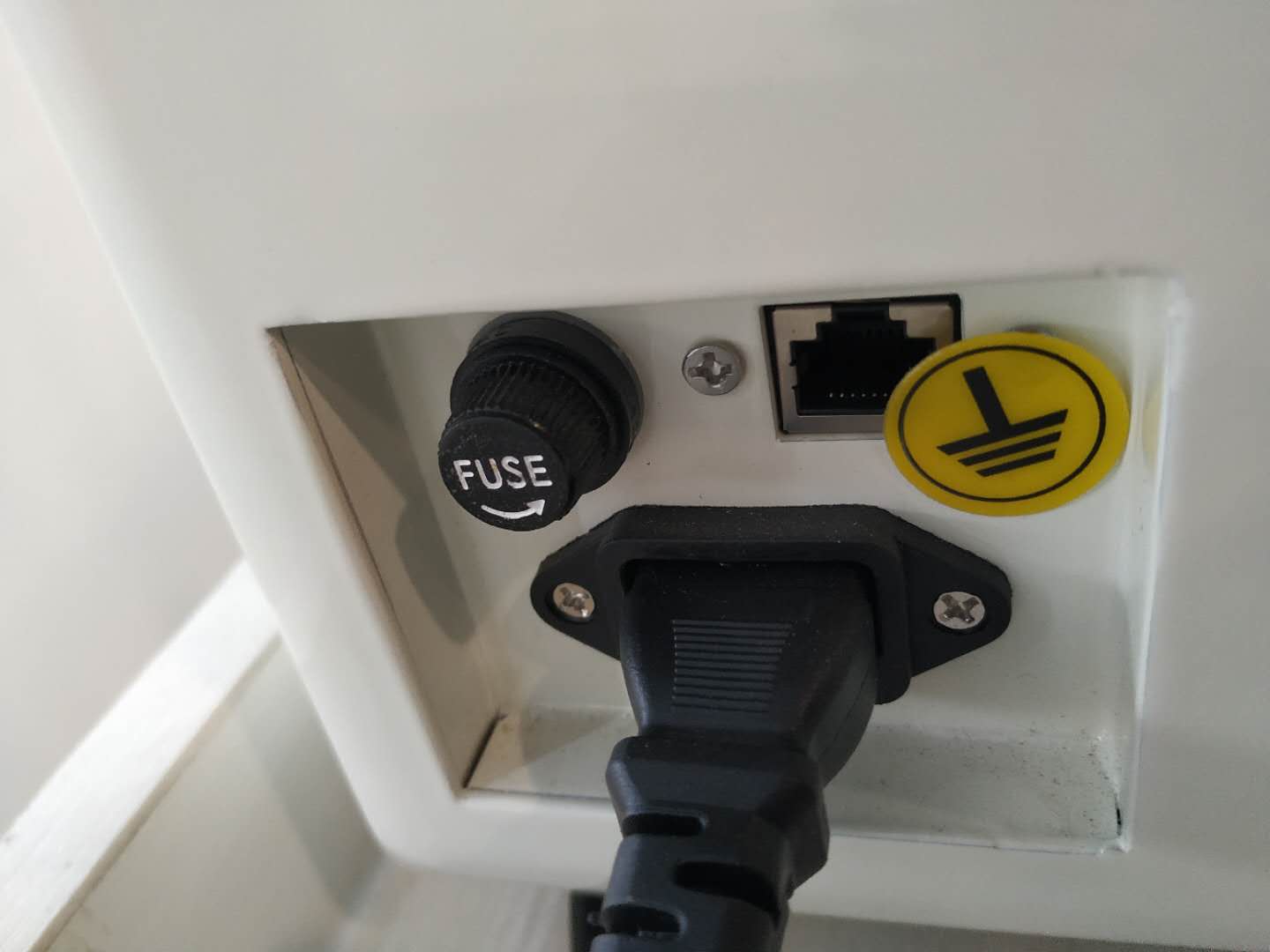

Power Port & Network Port:
Holder Accessory (for hang Weight to calibrating) :
![]() |
